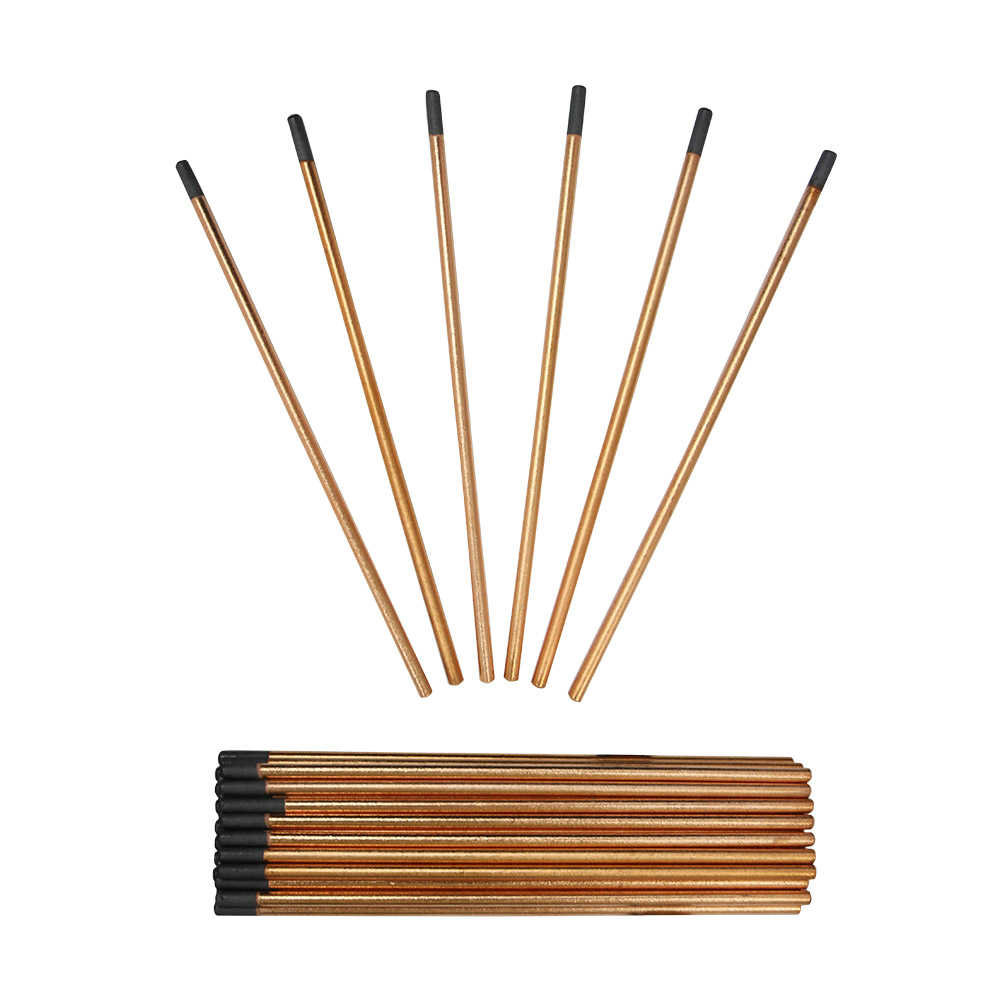

Gouging Carbon

Auweld DC gouging carbons are suitable for boring, cutting, removing of defects in welds and casts and flushing excess metal off the weld.

Features

  • Designed especially for the air carbon arc metal removal process, which melts metal with an electric arc, then blows it away with a jet of ordinary shop compressed air
  • Contain a precisely formulated blend of carbon and graphite that produces the most efficient metal removal performance
  • Excellent arc stability, superior metal removal rates, resistance to breakage, heat and oxidation, uniform diameter and clean slag free grooves
Categories: ,

Specifications

Gouging Carbons (DC), Pointed For general purpose grooving, cutting, welding inspection and removing over-welded parts
PRODUCT NO. SIZE (DIAMETER X LENGTH) CURRENT RANGE (AMP) METAL REMOVAL (g/cm)
260740121 4.0mm (5/32” X 12”) 150-250 ≈ 01
260748121 4.8mm (3/16” X 12”) 200-300 ≈ 21
260764121 6.4mm (1/4” X 12”) 250-400 ≈ 81
260780121 8.0mm (5/16” X 12”) 350-500 ≈ 33
260795121 9.5mm (3/8” X 12”) 450-600 ≈ 94
260711121 11.0mm (7/16” X 12”) 550-700 ≈ 66
260712141 12.7mm (1/2” X 14”) 650-800 ≈ 38
Gouging Carbons (DC), Jointed For automatic manual gouging whereby continuous electrode feed ensures excellent quality and eliminates stub loss
PRODUCT NO. *SIZE (DIAMETER X LENGTH) CURRENT RANGE (AMP)
260780122 8.0mm (5/16” X 12”) 500-550
260790122 9.0mm (23/64” X 12”) 550-600
260710122 10.0mm (3/8” X 12”) 600-650
260713122 13.0mm (1/2” X 12”) 800-1000
260716122 16.0mm (5/8” X 12”) 1000-1200
260719122 19.0mm (3/4” X 12”) 1200-1400
260780172 8.0mm (5/16” X 17”) 500-550
260790172 9.0mm (23/64” X 17”) 550-600
260710172 10.0mm (3/8” X 17”) 600-650
260713172 13.0mm (1/2” X 17”) 800-1000
260716172 16.5mm (5/8” X 17”) 1000-1200
260719172 19.0mm (3/4” X 17”) 1200-1400

*Sizes can be customized upon request

Gouging Carbons (DC), Flat For close tolerance metal removal and scarfing application, producing a rectangular groove
PRODUCT NO. *SIZE (DIAMETER X LENGTH) CURRENT RANGE (AMP)
260740123 4.0mm X 12.0mm (5/32” X 15/32”) 200-250
260750103 5.0mm X 10.0mm (3/16” X 25/64”) 250-300
260750123 5.0mm X 12.0mm (3/16”×15/32”) 300-350
260750153 5.0mm X 15.0mm (3/16”×19/32”) 350-400
260750183 5.0mm X 18.0mm (3/16”×45/64”) 400-450
260750203 5.0mm X 20.0mm (3/16”×25/32”) 450-500
260750253 5.0mm X 25.0mm (3/16”×63/64”) 500-550
260760203 6.0mm X 20.0mm (15/64”×25/32”) 550-600

*Sizes can be customized upon request
