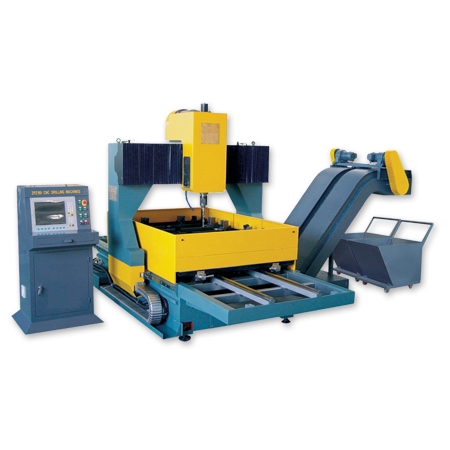

CNC Drilling Machine
Features
- AWZPZ160A digital control driller employs AC servo motor to drive the X and Y-axis, while Z-axis is position by high frequency raster.
- Uses semi-closed closure digital control system to have reliable performance.
- Operation can either be manual or automatic.
- Widely used in steel frame construction.
Specifications
| Model | AWAP1650 | AWZPZ2200 |
|---|---|---|
| Drilling Diameter | Ø 50 | Ø 60 |
| Max Dimension of Workpiece (mm) | 1,650 x 1,000 x 80 | 2,000 x 1,500 x 80 |
| Rotary Speed of Main Shaft | 130-400 r/min, Stepless and adjustable | 130-400 r/min, Stepless and adjustable |
| Feeding Type of Main Shaft | Hydraulic | Lead screw |
| Quantity of Moveable Working Platform | 2 | 2 |
| Number of Workpiece Can be Tooled For Once |
4 | 4 |
| Clamping Type | Hydraulic | Lead screw |
| X and Y-Axis Fast Moving Speed (m/min) | 12 | 12 |
