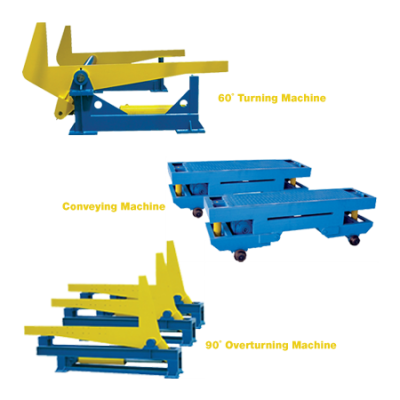

180° Hydraulic Overturning Machine
Features
- Main machine composed of 90˚ overturning arm, base frame, moving wheel group, moving motor gearbox and rail.

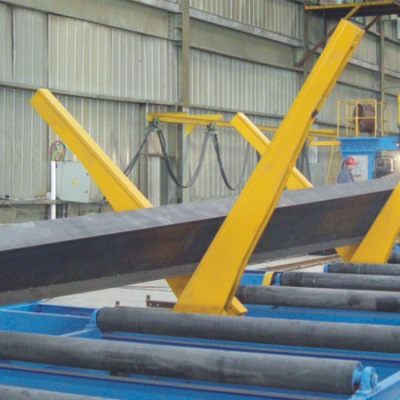

- Gear motor drives 2 groups of overturning fame to move simultaneously, moving workpiece to the side of roller conveyor, and finally the oil cylinder pushes the arm to turn workpiece 180˚, and then move to roller conveyor to be conveyed.
- Cable oil pipe adopts drag link packing.
Specifications
| Weight of Workpiece |
≤ 15T |
| Max Section Dimension of Overturning Workpiece (mm) |
800 x 1,500 |
| Moving Motor Speed (kW) |
2 x 1.5 |
| Moving Speed (m/min) |
6 |
| Overturning Cylinder Diameter (mm) |
Ø 140 |
| Max Pressure of Hydraulic System (MPa) |
20 |
| Machine Power (kW) |
18.5
|
 |
| AWHS-60C |
Features
- Belongs to oil cylinder down press type straightening machine, it has similar straightening capacity as YJZ-60B, but straightening range is wider than YJZ-60B (flange plate can be 1,000 mm).
- Two upper press cylinders can do straightening separately to straighten asymmetry deformation.
- Do not require elevating roller conveyer and universal joint.
Specifications
| Model |
AWHS-60C |
| Width of Flange (mm) |
200-1,000 |
| Thickness of Flange (mm) |
≤ 60 |
| Min Height of Web (mm) |
350 |
| Material |
Q345 (16Mn) |
| Straightening Speed (m/min) |
6.15 |
| Total Power (kW) |
27.5 |
