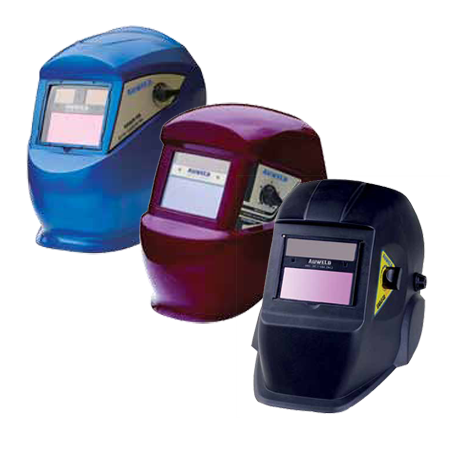

Auto-Darkening Welding Helmets

Auweld auto-darkening welding helmets are designed to protect welders from the harmful ultraviolet, infra-red rays as well as occupational eye diseases.

Our welding helmets can be customized for use for different types of welding by adjusting the shading numbers according to the different arc currents used in the various welding methods. The helmets are light, provide a comfortable fit and comes with a large viewing area.

Auweld welding helmets and filters are CE certified.

Features

Solar Battery

• Solar-assisted battery with no recharge required.
• Built-in low-battery indicator

Viewing Area

• Anti-refraction
• High temperature resistance
• Effective spray defense and automatic consecutive darkening system
• 1/20000 second speed

Adjust Darken Knob
Segmental adjustor for adjusting shades according to different working conditions and individual needs

Delay and Sensitivity Adjuster
Independent and adjustable delay time and sensitivity enables flexibility for use in various working conditions

Anti-Jamming Switch
Prevents user from being interrupted by fellow welder’s activities

Exclusive Comfort Cushion
Specially designed knob allows adjustment of head band for best fit

Protection Lens
Re-installable lens protects the filter from crushing and splatter damage

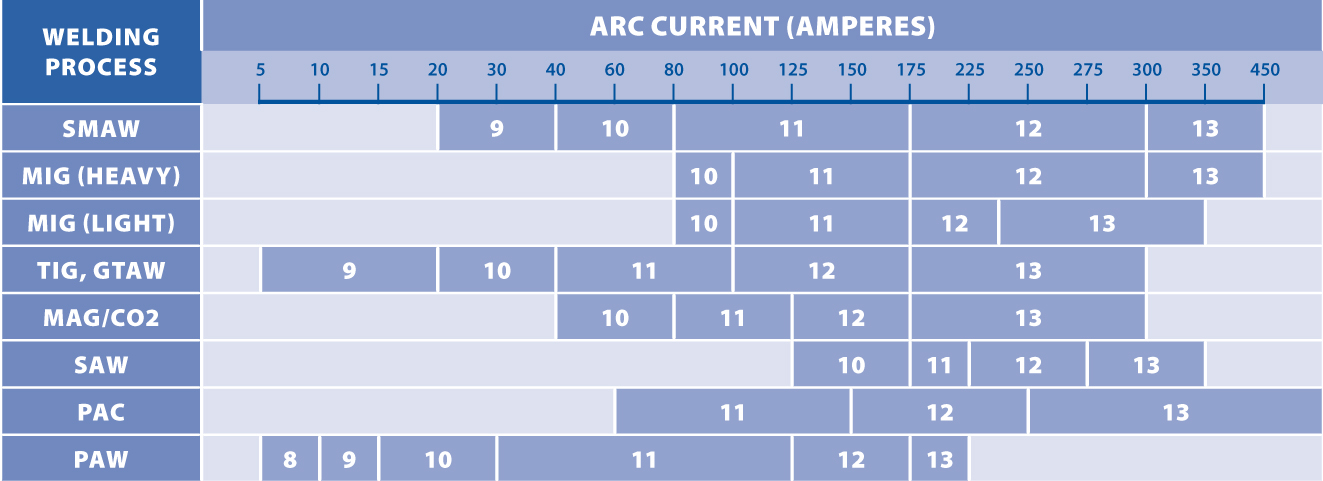

Shade Guide Table

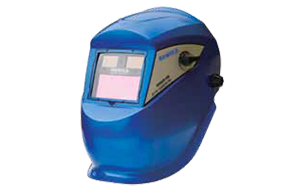

PRODUCT NO.		2474000600
MODEL		HAWK-06
FILTER		TYPE 6
FIRE RESISTANCE		Yes
MATERIAL & WEIGHT (KG)		PA/PP, 0.571
COLOR		Blue / Black / Other customized colors
DIMENSION (mm)		340 x 220 x 190
VIEWING AREA (mm)		96 x 46

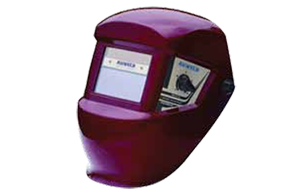

PRODUCT NO.		2474000400
MODEL		FALCON-04
FILTER		TYPE 6
FIRE RESISTANCE		Yes
MATERIAL & WEIGHT (KG)		PA/PP, 0.531
COLOR		Blue / Black / Other customized colors
DIMENSION (mm)		340 x 225 x 190
VIEWING AREA (mm)		96 x 46

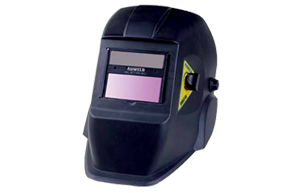

PRODUCT NO.		2474000200
MODEL		EAGLE-02
FILTER		TYPE 6
FIRE RESISTANCE		Yes
MATERIAL & WEIGHT (KG)		PA/PP, 0.641
COLOR		Blue / Black / Other customized colors
DIMENSION (mm)		340 x 220 x 190
VIEWING AREA (mm)		96 x 46
